Ed's Keys Page five

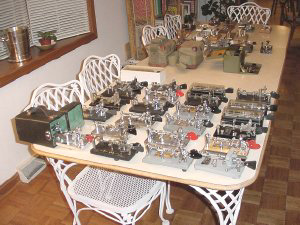

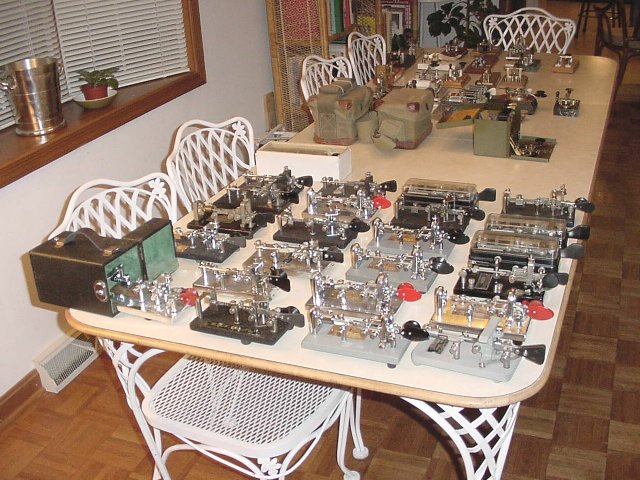

                     Another view of the "Bug" collection.

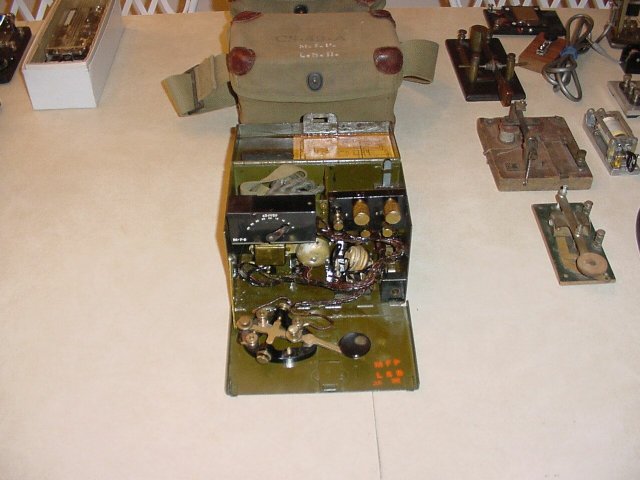

      A military TG-5 portable telegraph set.

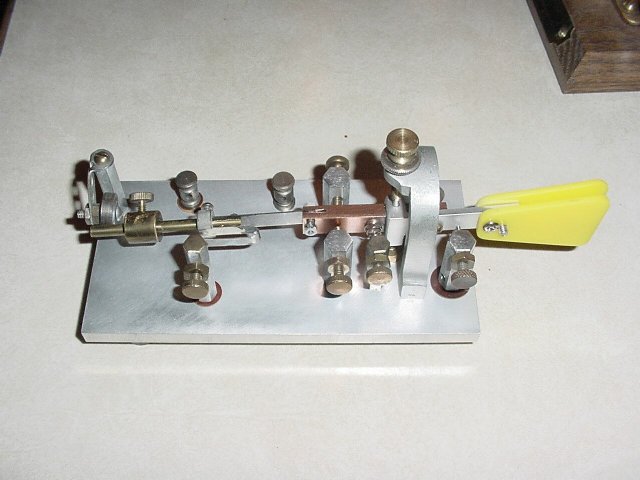

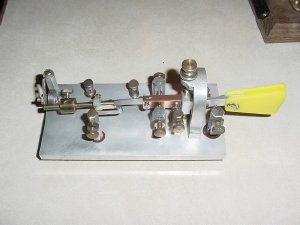

      A nice homebrew bug with the paddles made out of guitar picks.

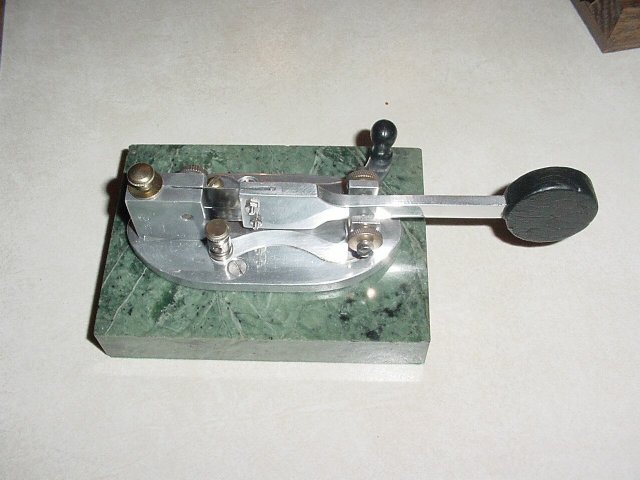

    Reproduction of a Bunnell "sideswiper" key. Another early attempt to ease "Glass Arm". The keyng motion is sideways rather than up & down.

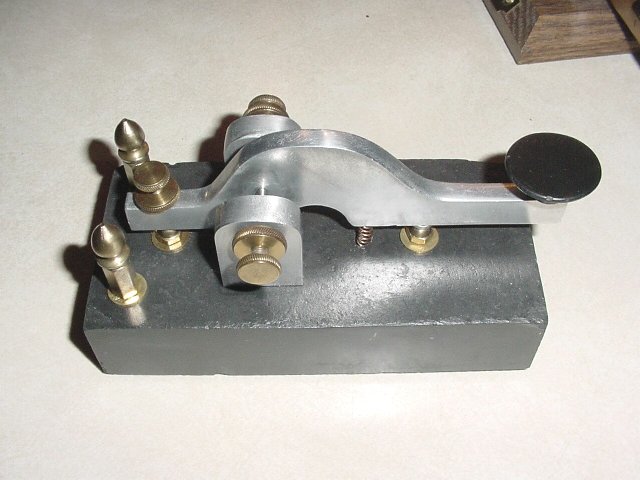

Another Camelback style key this time a reporduction of an early German model.
One of Ed's keys is feathered on the famous site maintained by Professor Thomas B. Perera of Montclair State University , the    "KEY"  can be seen at :    http://w1tp.com/9898.jpg

Last time I saw Tom was at the MRCA show in 2002 where he hauled three Enigma machines into the building for a class to the show MRCA attendees.

For W1TPs Internet On-Line Telegraph & Scientific Instrument Cyber-Museum please see the link at the end of this page.

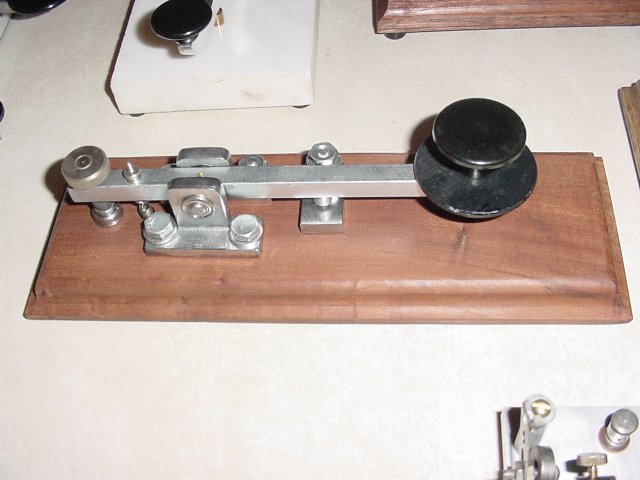

       A reproduction of a typical early spark key utlizing heavy contacts to handle the large current loads.



      Thanks Ed it was a very nice tour and we appreicate your efforts.








                                UPDATE: Latest Key Projects   (last update July 2005)
