S-103

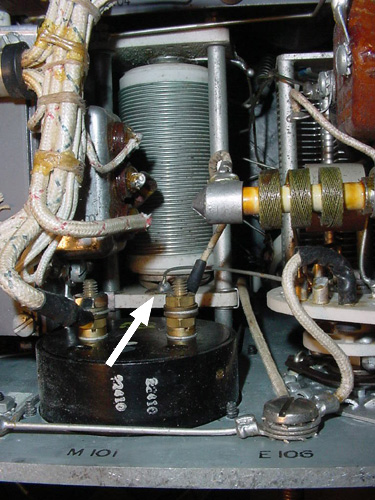

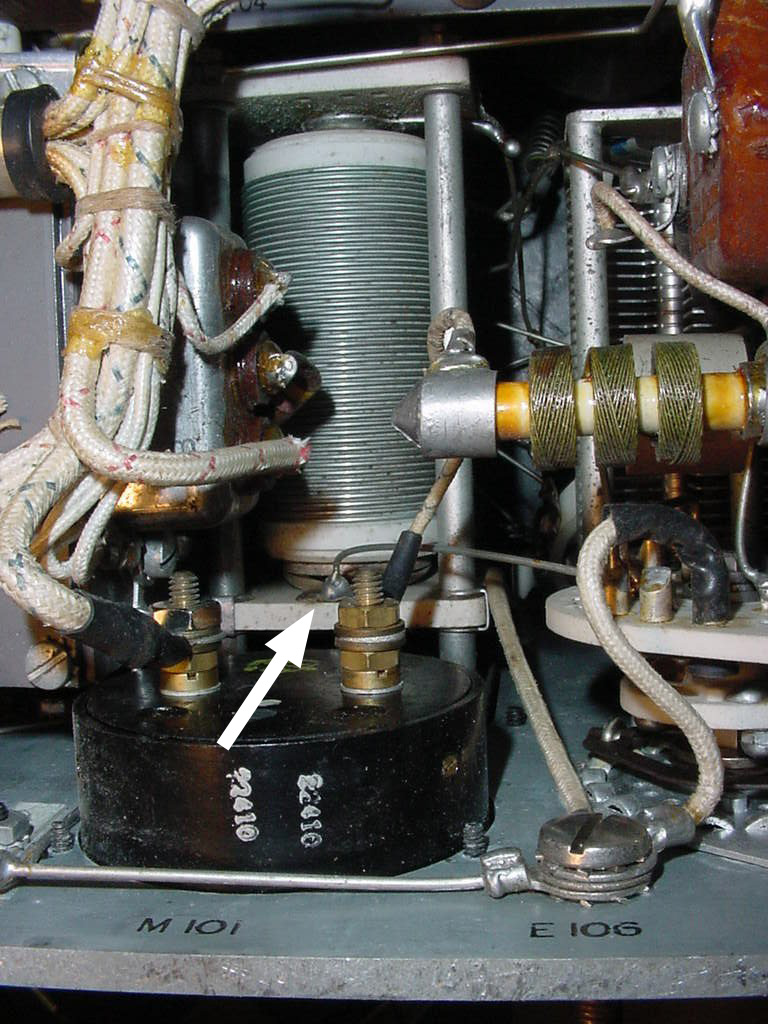

wired to the front of L108 TCS-13
Q.
Why is the Antenna Loading Coil L108 wired differently on different TCS
series ? The "front" of the coil goes
to S-103 on my TCS-13 and on my TCS-9 ( shown below)S-103 is connected
to the "rear" of
the roller inductor L108.
Q. Was this change in wiring only for the TCS-13 or was it introduced in other earlier series of TCS transmitters follwing the TCS-9.
Q.
What happens to "Typical Dial Readings"? Chart shown below.

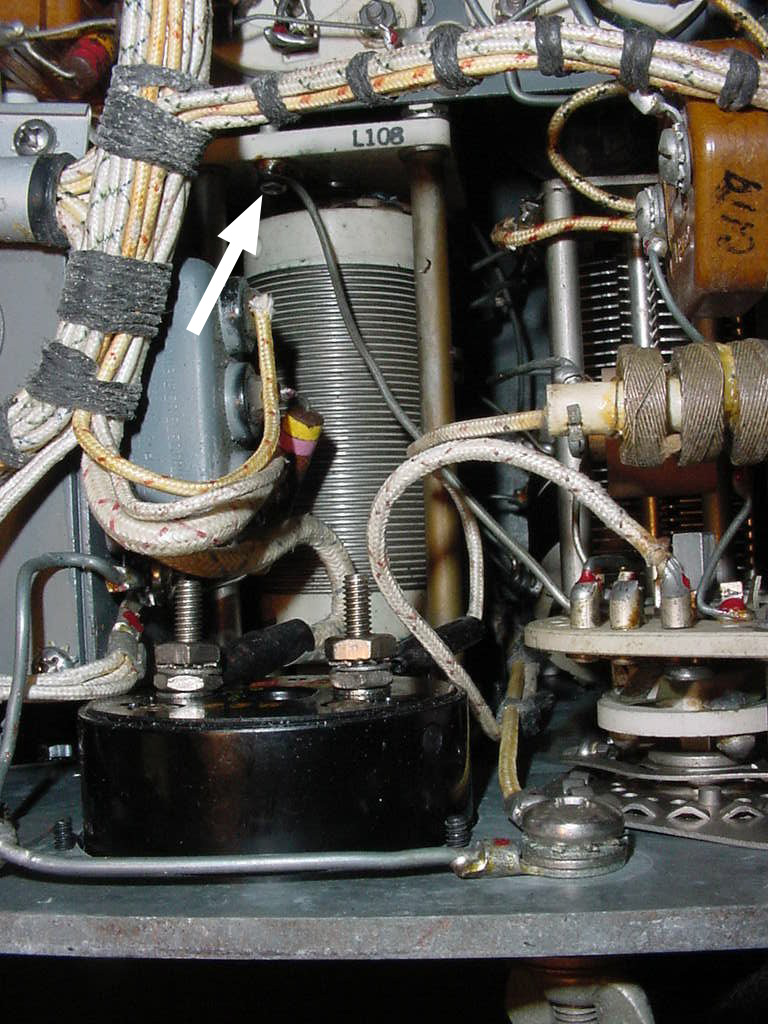

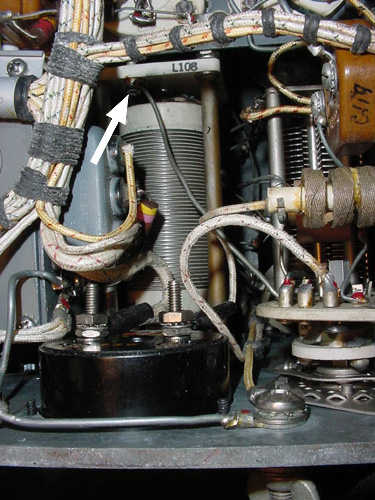

S-103 wired to the rear of L108 on my TCS-9.
The
"rear" of the Antenna Loading Coil on my TCS-9 is wired to S-103.
I
have seen the L108 Antenna Loading Coil wired differently on several sets
over the years, I have solved what I think iis a possible reason
for the change but present these photos here for your review and possible
comments. A "TCS Mystery"?

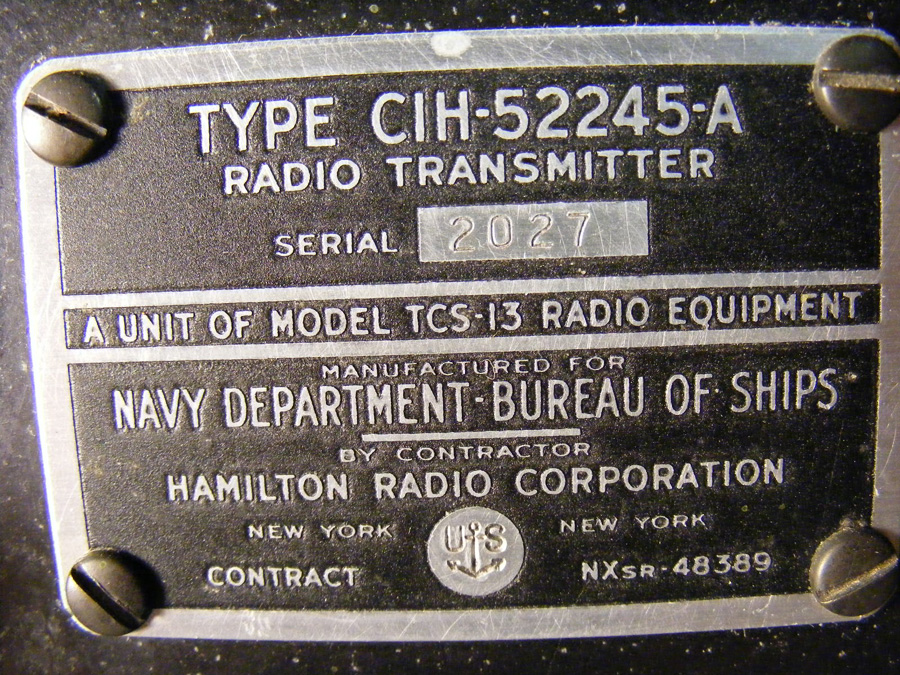

Data tag from my Hamilton TCS-13 which has the front of the Antenna Loading Coil L108 wired to S-103.

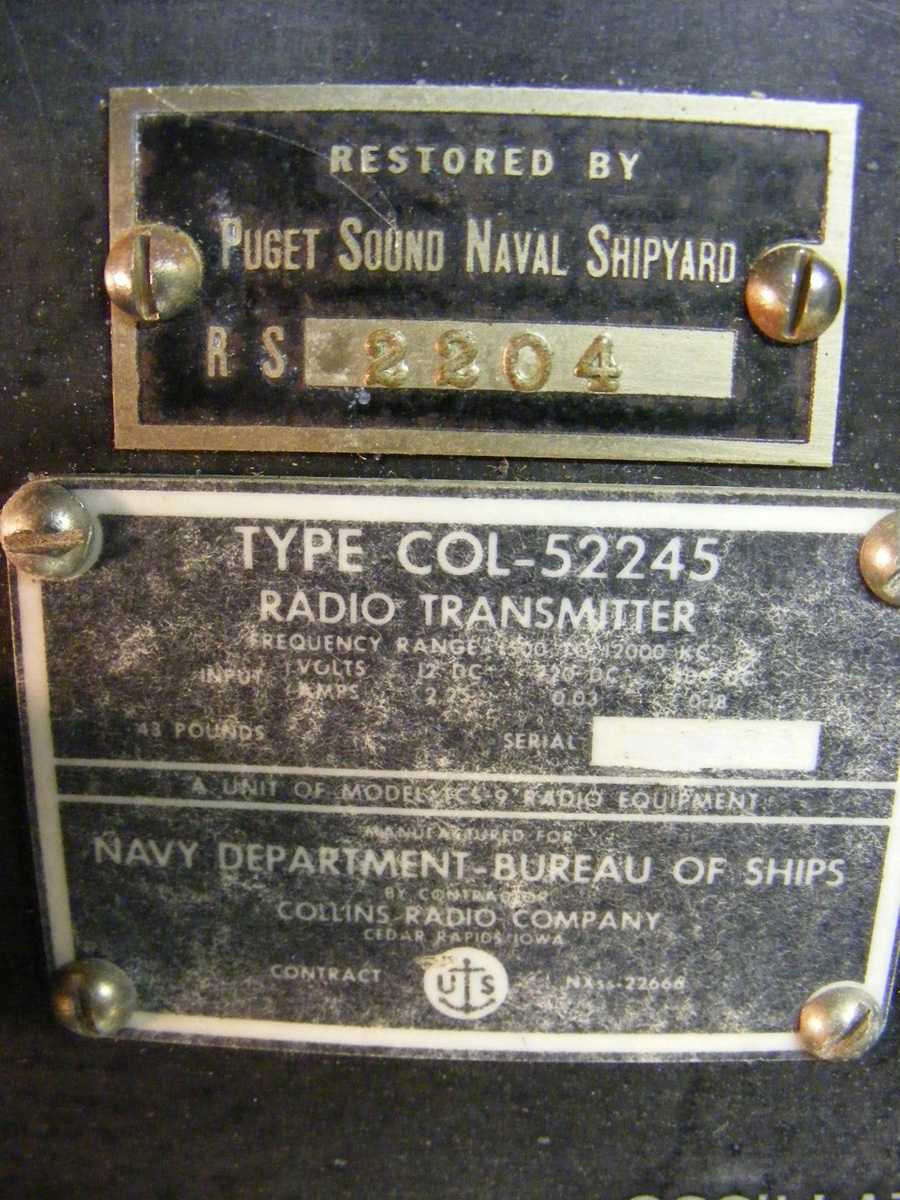

Data tag from my TCS-9 on which the "rear" of the Antenna Loading Coil is wired to S-103.

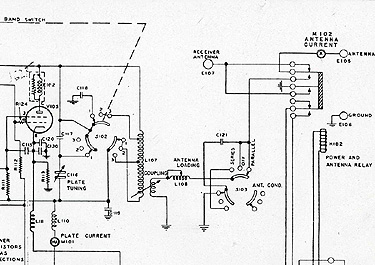

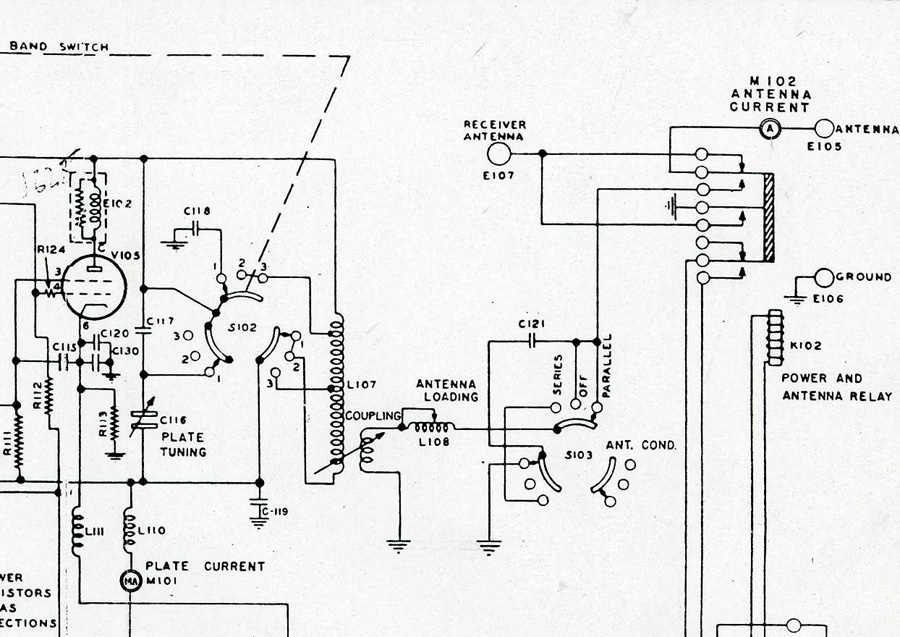

Schematic scanned from Hamilton TCS-13 manual.

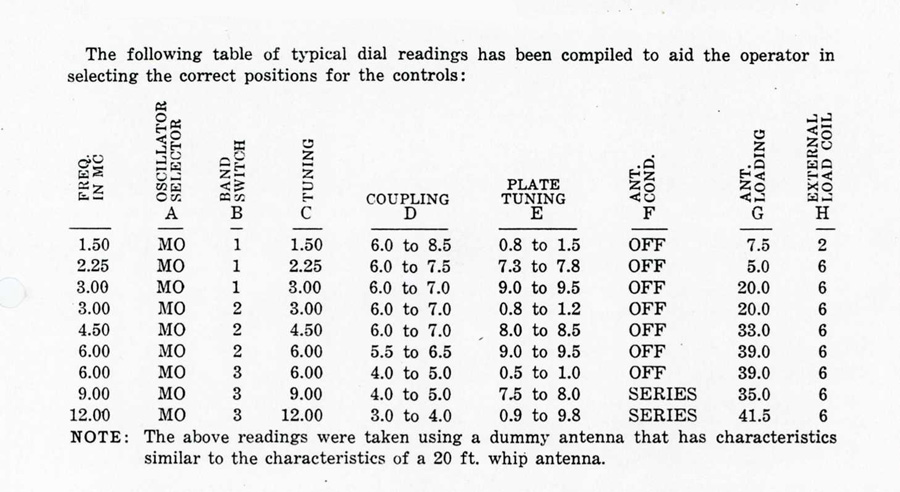

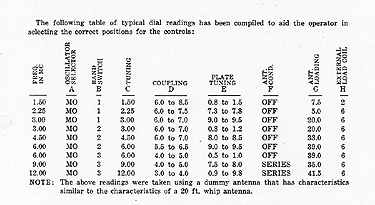

With the different wiring of the Antenna Loading Coil L108 on different sets what happens to charts like this?

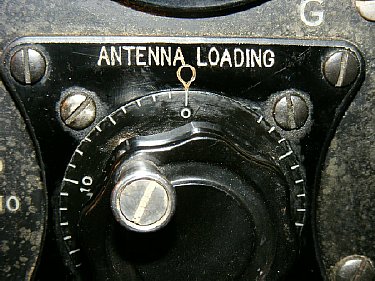

Does "Zero" indicate minimum inductance on my TCS-13 and on the TCS-9 ?- - --they are both wired differently.
