Mystery Antenna
Can anyone ID this antenna and the system that it goes with?
Antenna was purchased in the Baltimore-Washington area at a hamfest.
No data plates or markings.
Mystery
Resolved by Mike Mike KM6AB
Info at the bottom.

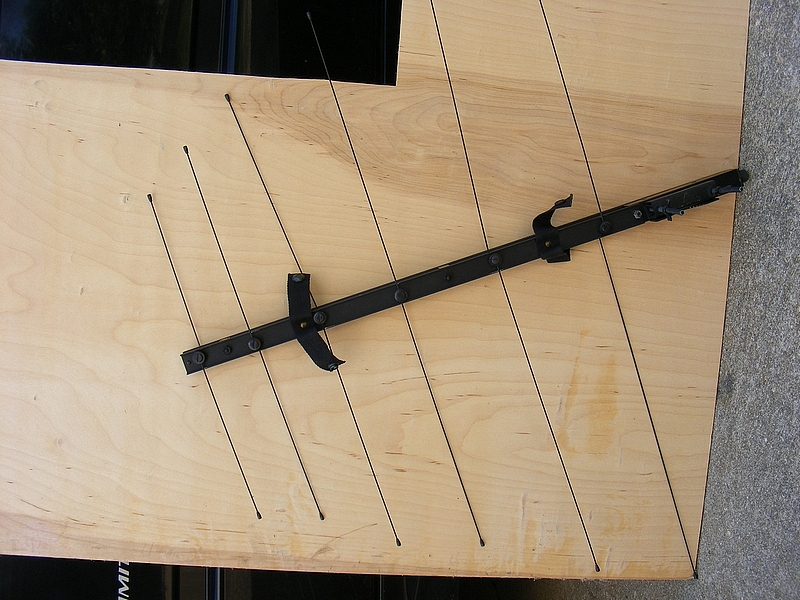

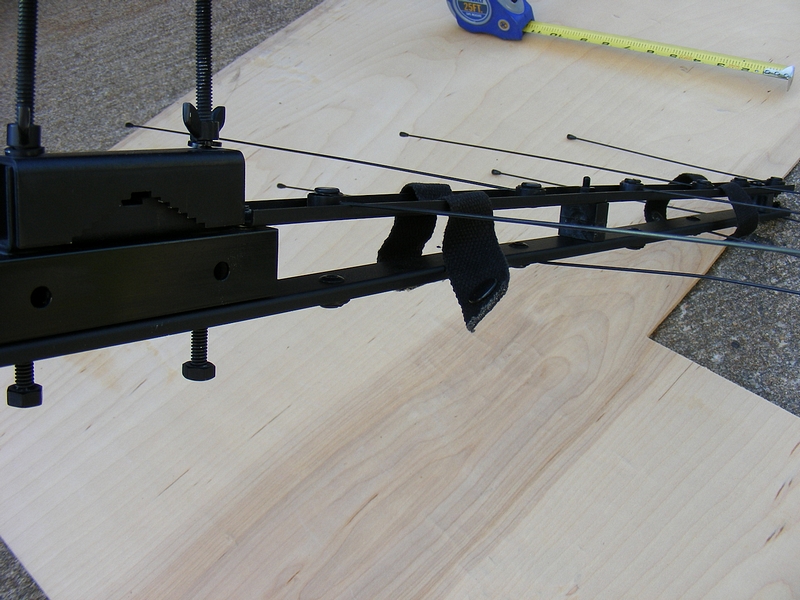

6 wire elements that snap into place
Log Periodic Construction.
Longest element 18.5 inches.

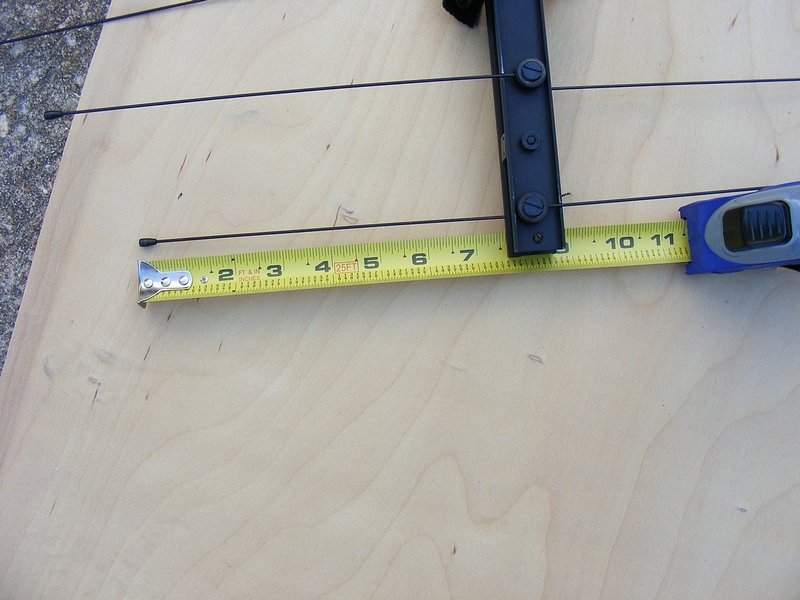

Shortest element 7.75
inches
Frequency coverage from 146 to 230 Mcs.

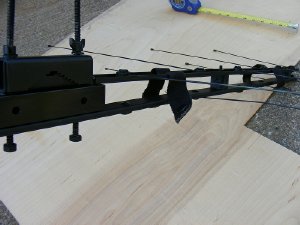

SO-239 connector and pipe clamp.

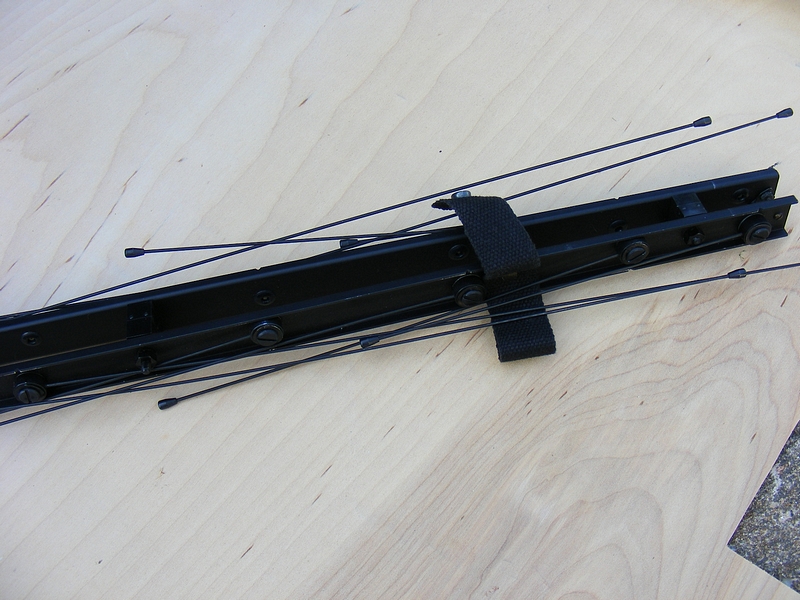

Canvas snap tags hold elements in place for storage

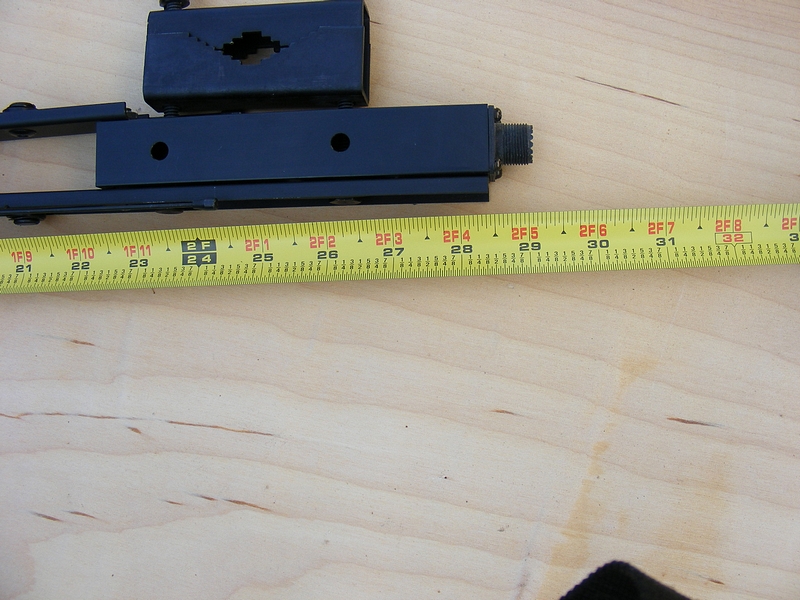

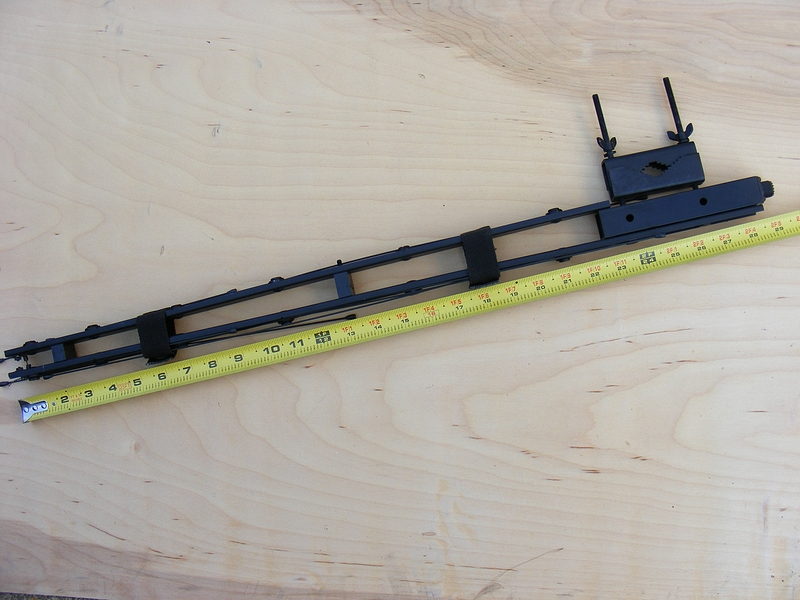

Boom length 29 inches, antenna mount
can be vertical or horz.

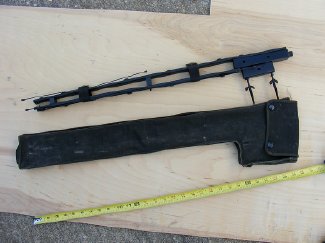

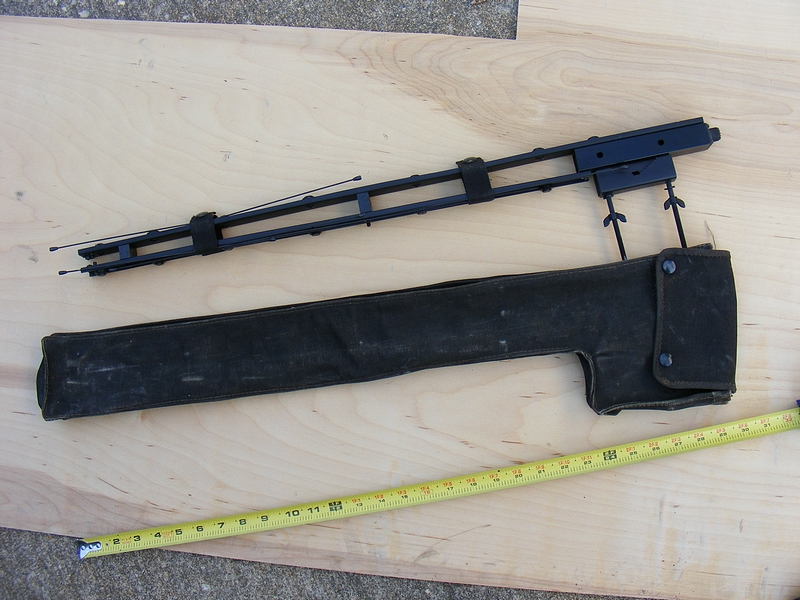

Black canvas case, no markings.
Mystery
Antenna Identified by KM6AB
Hi Breck, Saw your request on the VHF/UHF antenna info. Its a Telex Hy-Gain
model 3903BA and covers 150 to 240 MHz. Some were supplied by Transcrypt
International in the 1980s and 90s for their VHF frequency hopping radios,
some were sold to the Israili MOD and a silver version is sold for use
with VHF wireless entertainment microphones. Check Ebay item # 390143758721
for a new silver one from a commercial vendor. I have several of these

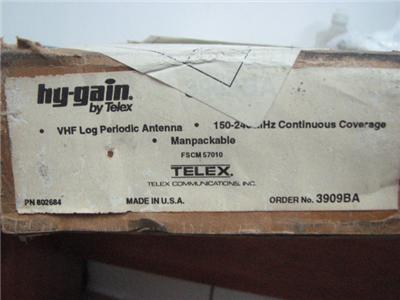

antennas and attached is a pic of a label supplied on the shipping box.
They work fine on 2m and 220MHz.

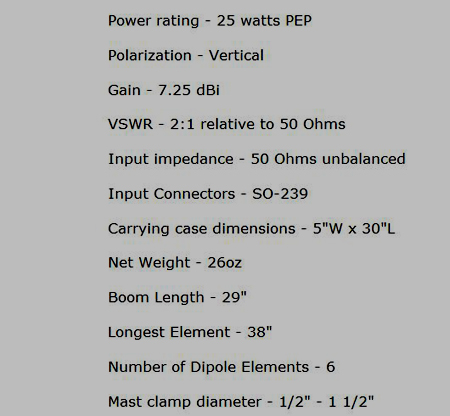

Additonal Specs below.
Click here for the "civilian version"
Photo by KM6AB
