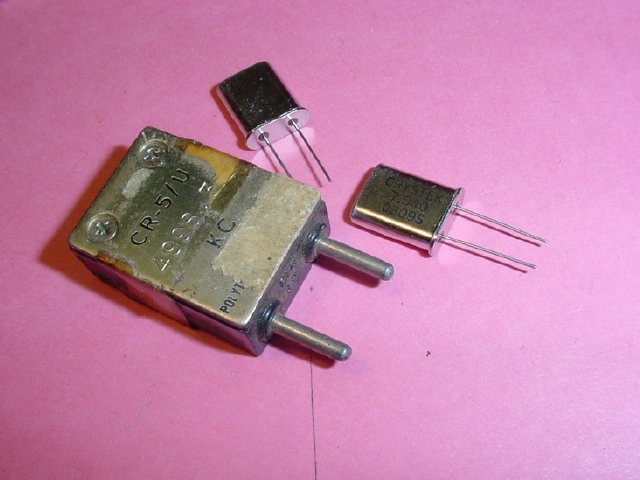

In
most cases the HC18 will fit inside the FT-243 without modifying the interiror
of the FT-243Links at the bottom of this page.

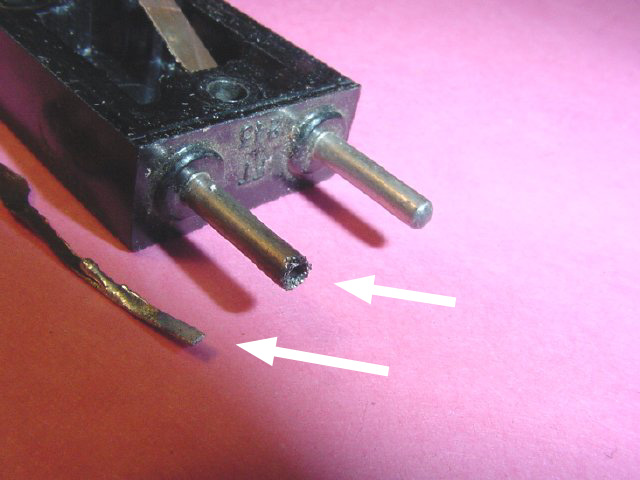

Completely
remove the copper pads and their connections from the pins of the FT-243

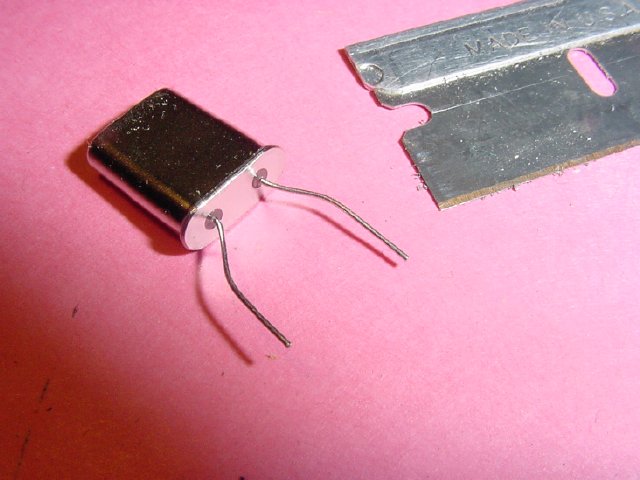

Shape the HC18 leads and fit in the FT-243. I scrape the
leads carefully to provide a solid solder base.

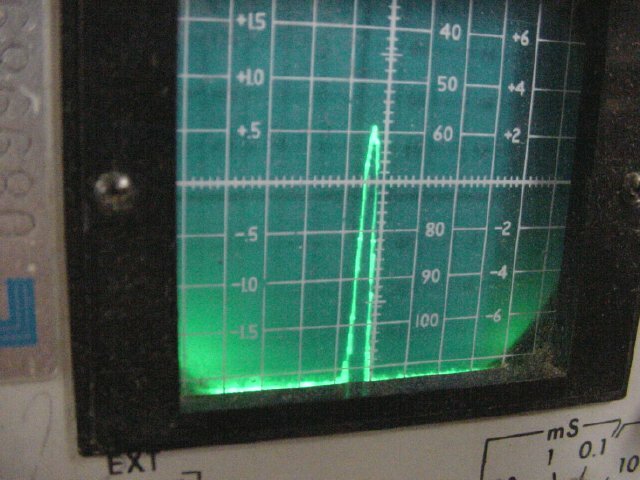

I
check activity and the approximate frquency of the crystal before proceeding.
Looks
good

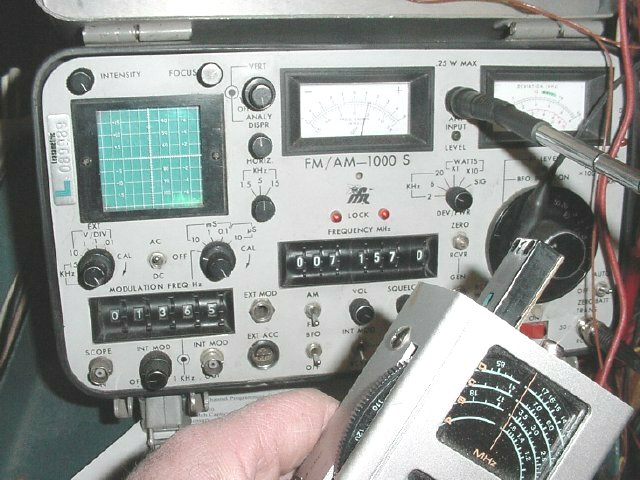

After testing in your transmitter and making a final determination
of the frequency then stamp on the inside of the FT-243 cover.

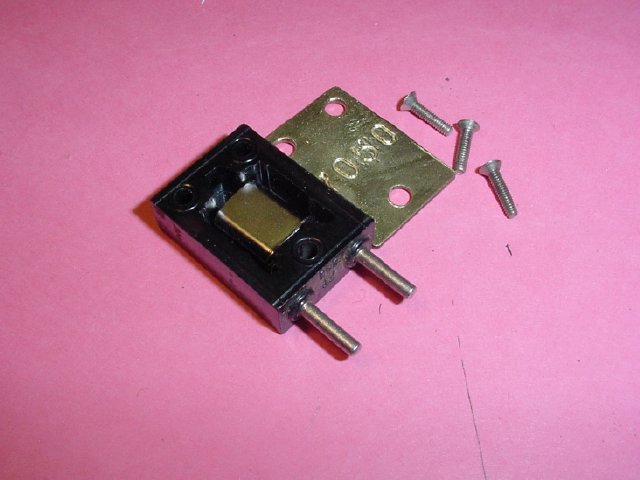

springs, old crystal, old metal pads and copper pads back in. They
won't fit.
Ready for the road. JAN CRYSALS, Ft. Myers Florida
