Mission: Remount
HC6/U internal crystal elements in FT-243 holders. Throw away the HC-6 holders. |
 |
Overview: A lot of folks like
the FT-243 mount, it lends authenticity to your older equipment.. You
can easily convert the HC-6 pins to larger pins but still the HC-6 just
doesn't look right when mounted in that older military or amateur transmitter
and receiver.
PLEASE NOTE: There are several processes presented on these
pages, The first method shown on this page for remounting
the HC-6 crystal blanks does not
work reliably and often results in a fractured crystal but
other methods that are shown on pages 2 and 3 are easier to duplicate
and they work.
|
You choose, which holder do you like the best. |
Unsolder the HC-6 |

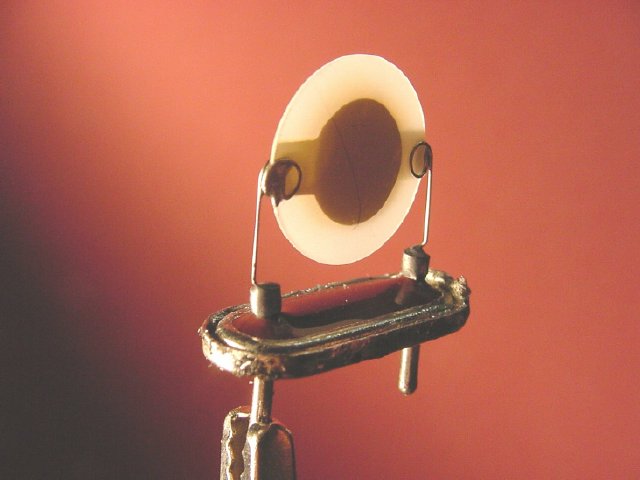

Expose the crystal |
Carefully
unsolder the crystal from the wire mounts. Good luck. |
Disassemble the FT-243 holder.
Save the FT-243 crystal that you removed for future
"grinding" projects.
|
Clean
the HC-6 crystal blank including removing the microscopic traces of solder
and place in the in the FT-243 holder and reassemble. |
Test
the crystal. A grid dip meter is a fine instrument for crystal testing,
you can vary the circuit characteristics for the crystal being tested by
simply varying the frequency dial of the meter. |
During
the removal of the wire leads from the HC-6 crystal blank I often wound
up with a fractured crystal.
|
|
First Process Conclusion:
It
don't work.
Why doesn't this work? Well each time I was probably
unsuccessful in properly cleaning the crystal of minute residue and the
HC-6 crystal blank has a metal substrate that the pins solder to. The
FT-243 holder does not like the metal substrate surface so it doesn't
oscillate... but the really big crisis was that in the process I sent
several HC-6 crystal blanks to never never land.***
I am sure that the leads can be removed from the HC-6
blanks and that the "transplant" process can be accomplished
but still you have the danger of fracturing the crystal blanks and wasting
a lot
of time and crystals . . . So I put this first
method in the "too hard to do box"
*** Never , never land, means
South, the same
place those 807's,1625's, 829's go when they fade away.
|
The HC-6 crystal design looks very fragile but is reliable.

Anyway enough of this falderah go to page
two for a better method of using the HC-6 blank in a
FT-243 holder.
PAGE 2
|
|
|
|
|
|
|
