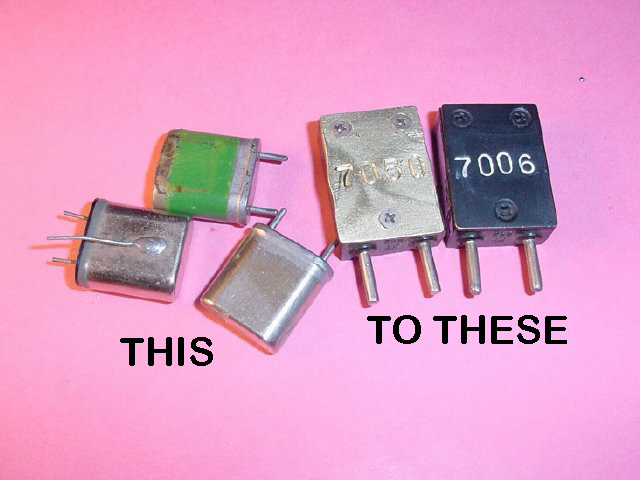

Mission: Remount HC6/U internal crystal elements in FT-243 holders. Throw away the HC-6 holders.



Overview: By unsoldering the outer case from an HC-6 holder you can have access to the actual crystal and its leads. Unsolder this crystal assembly and remount inside the FT-243 holder.


   Unsolder the HC-6 case

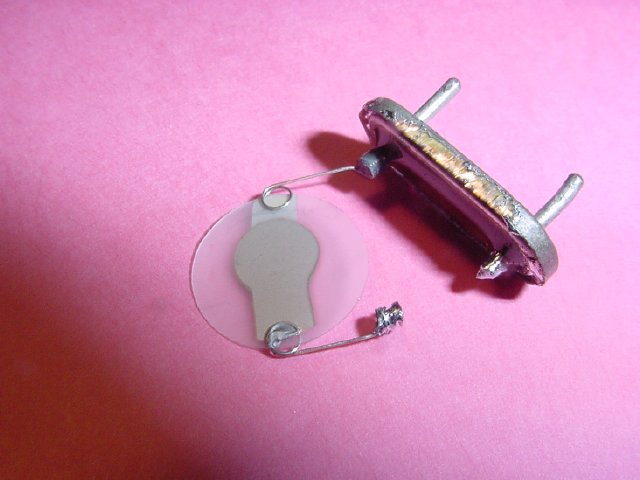

   Unsolder the crystal leads"and remove the assembly. Handle carefully.


   Disassemble the FT-243

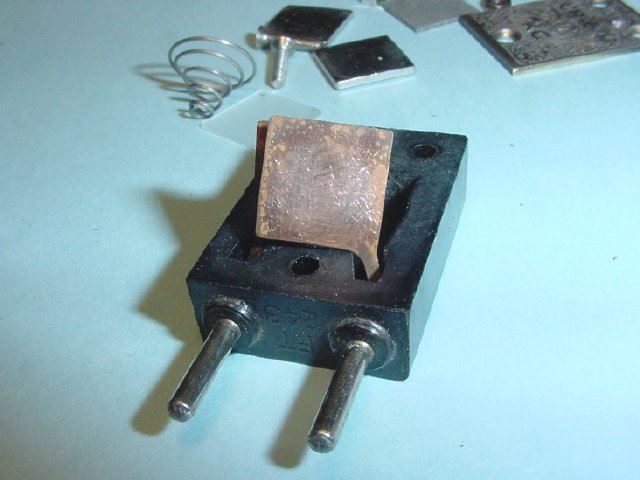

    Lift up the copper pads that are connected to the main pins

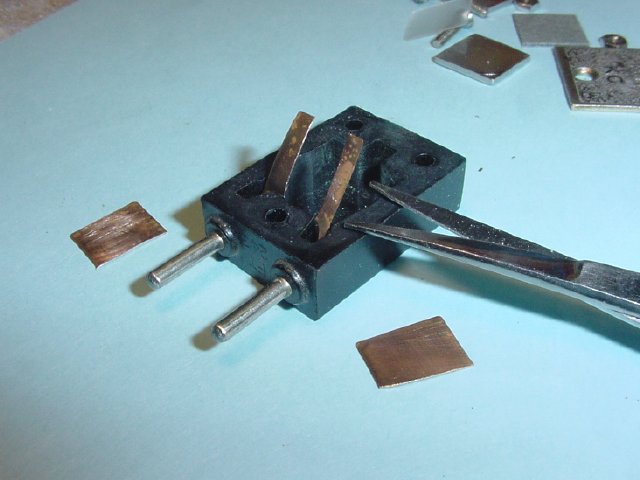

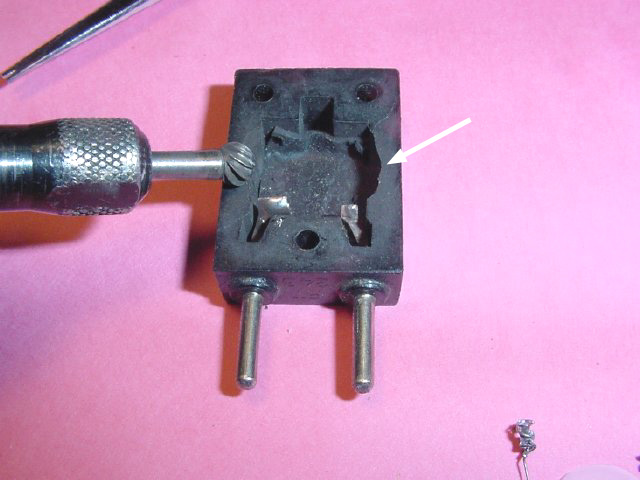

    Trim the copper pads with a pair of scissors.    Using a Dremel tool enlarge the interior of the FT-243 to accommodate the new crystal.

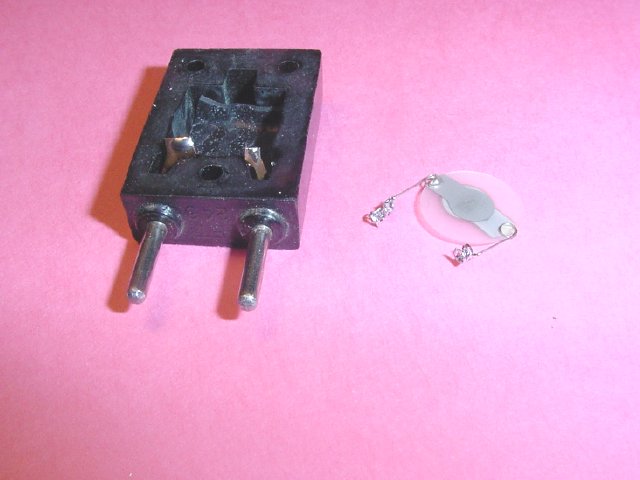

    Tin the small tabs remaining and your crystal is:
         Ready for Assembly





           GO TO PAGE 3
